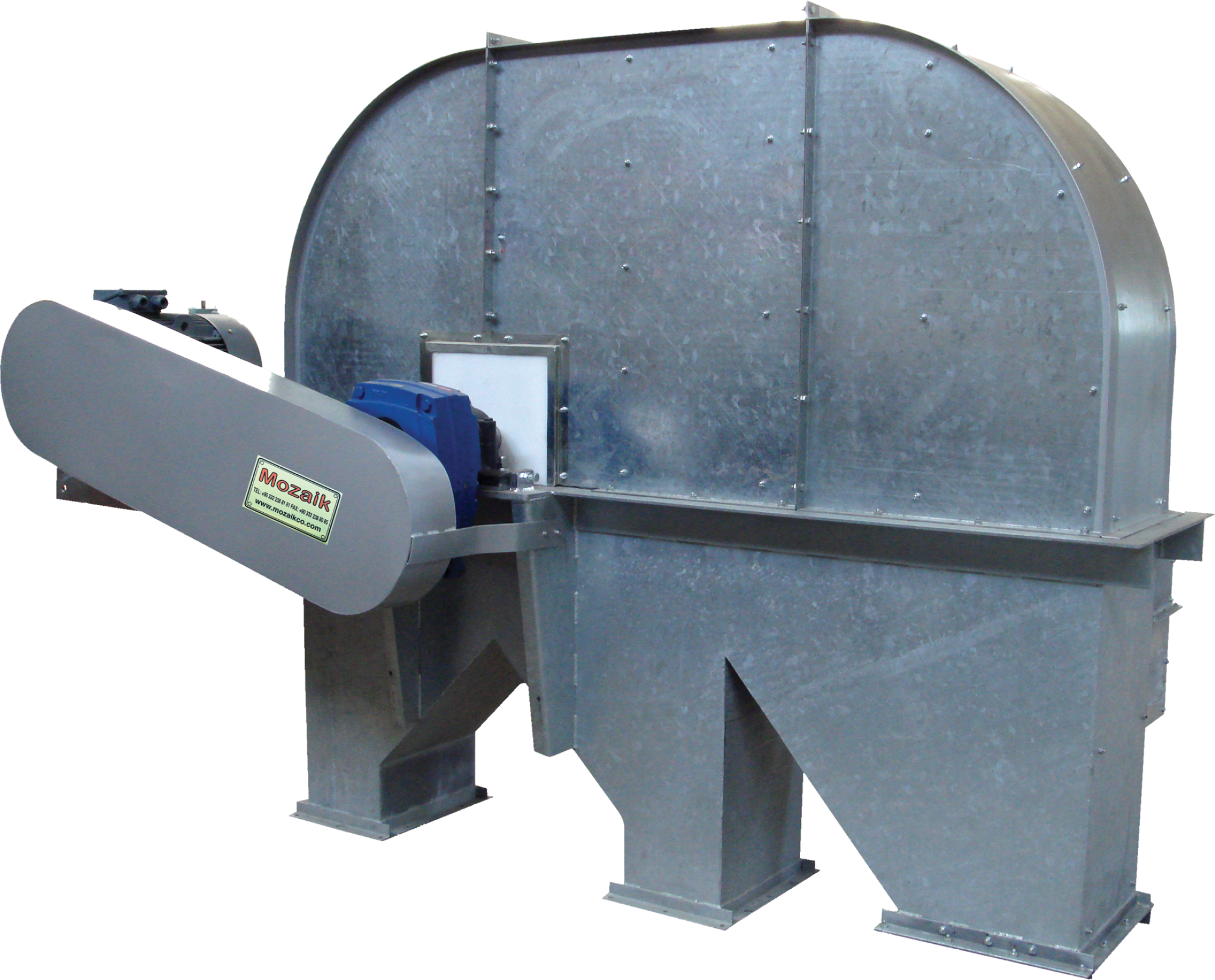

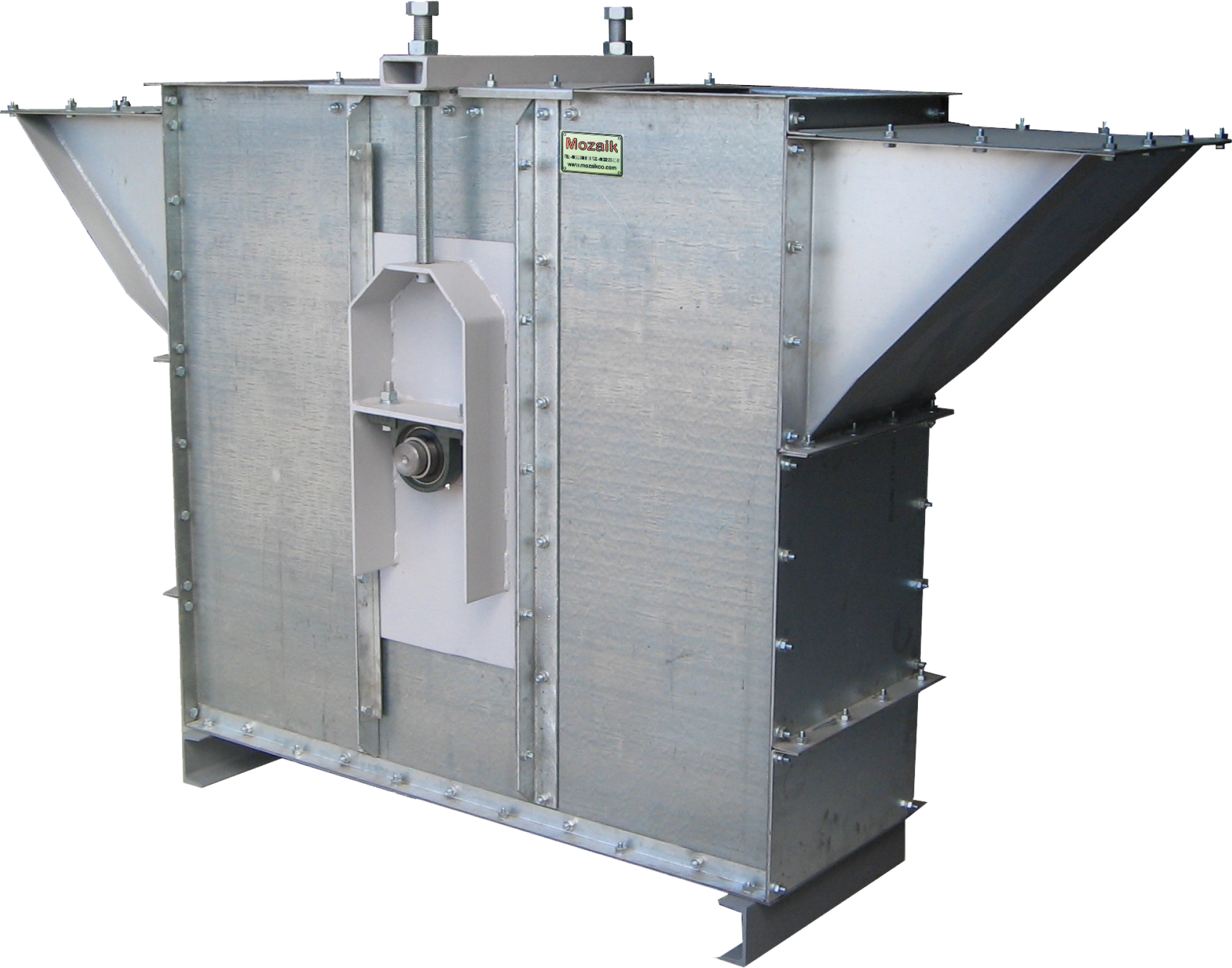

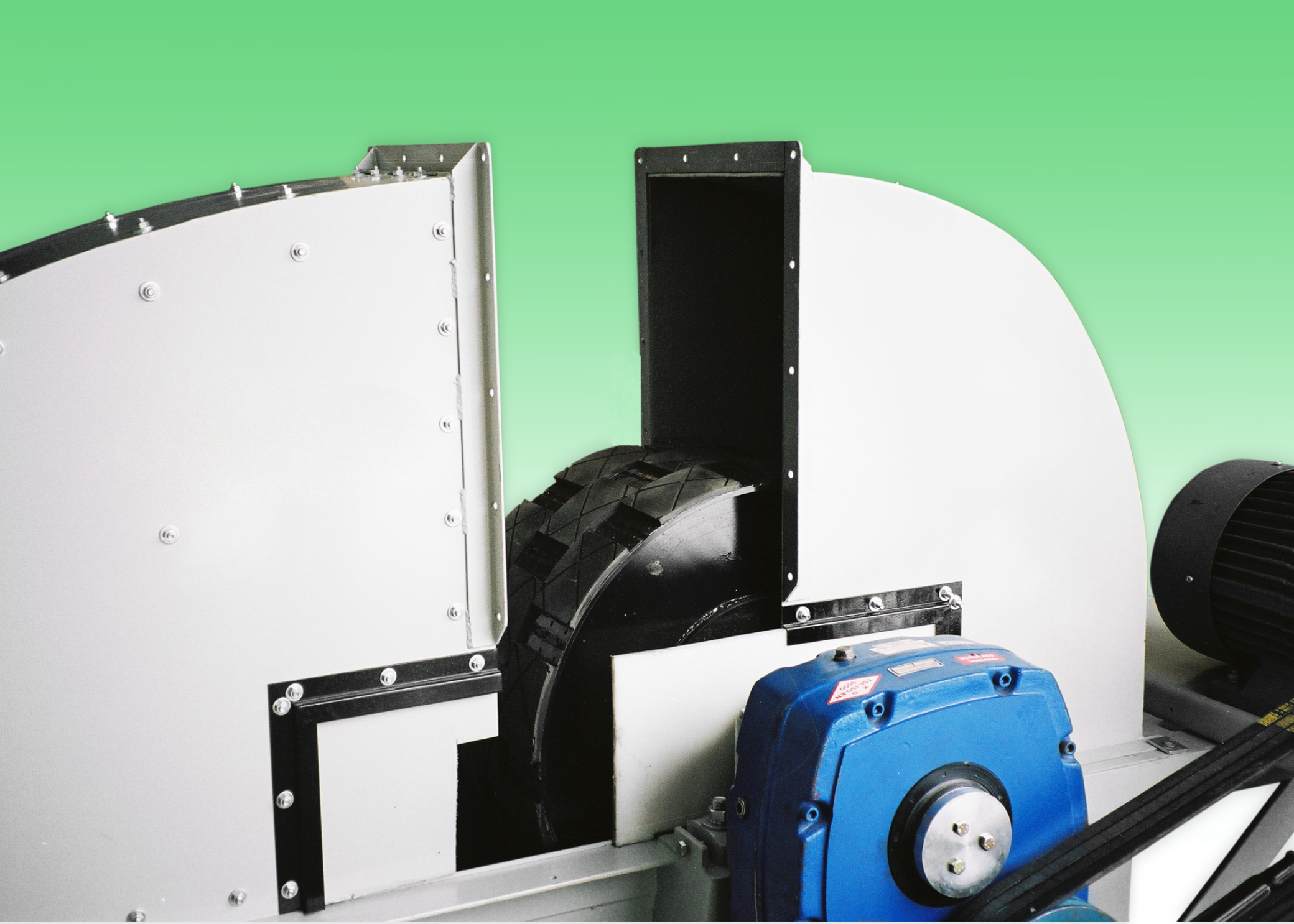

This machine is used for carrying all kinds of cereals vertically. It is made from galvanised sheet iron. The belts are made from rubber and cord bead. The buckets are plastic press.

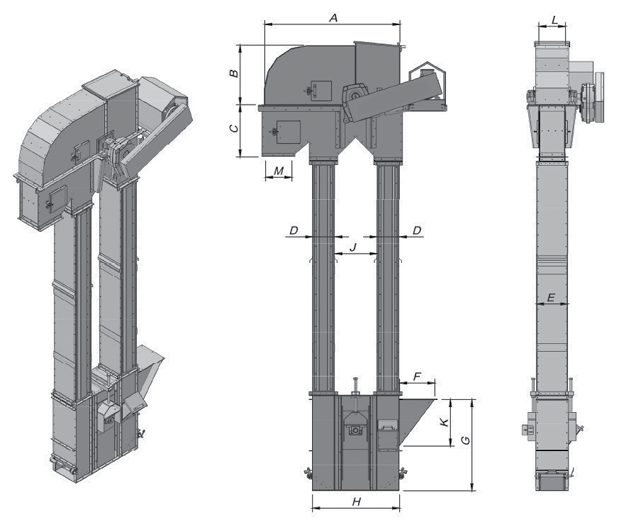

| Cappacity (t/h) Capacité (t/h) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
E (mm) |
F (mm) |
G (mm) |
H (mm) |
|
| 50 - 70 | 1473 | 625 | 635 | 235 | 330 | 398 | 1001 | 939 | 463 | 517 | 280 | 264x247 | |
| 100 | 1722 | 758 | 665 | 283 | 390 | 449 | 1161 | 1110 | 538 | 593 | 340 | 322x334 | |
| 150 | 1853 | 1053 | 795 | 293 | 421 | 443 | 1148 | 1246 | 652 | 571 | 374 | 357x302 | |
| 200 | 2422 | 1141 | 1120 | 300 | 510 | 479 | 1376 | 1468 | 860 | 628 | 460 | 442x452 | |
| 250 | 2426 | 1143 | 934 | 299 | 563 | 480 | 1376 | 1470 | 861 | 625 | 506 | 500x460 | |
| 300 | 2766 | 1238 | 991 | 430 | 622 | 695 | 1795 | 1650 | 839 | 873 | 540 | 532x548 | |
| 350 | 2766 | 1238 | 991 | 460 | 672 | 695 | 1795 | 1650 | 839 | 873 | 590 | 582x548 | |
| 400 | 2766 | 1238 | 991 | 460 | 722 | 695 | 1795 | 1650 | 839 | 873 | 640 | 632x548 | |
| 600 | 3089 | 1398 | 1160 | 475 | 941 | 778 | 1774 | 1883 | 1011 | 873 | 945 | 924x695 | |
| 800 | 3089 | 1398 | 1160 | 476 | 1346 | 770 | 1774 | 1883 | 1010 | 874 | 1350 | 707x1341 | |
