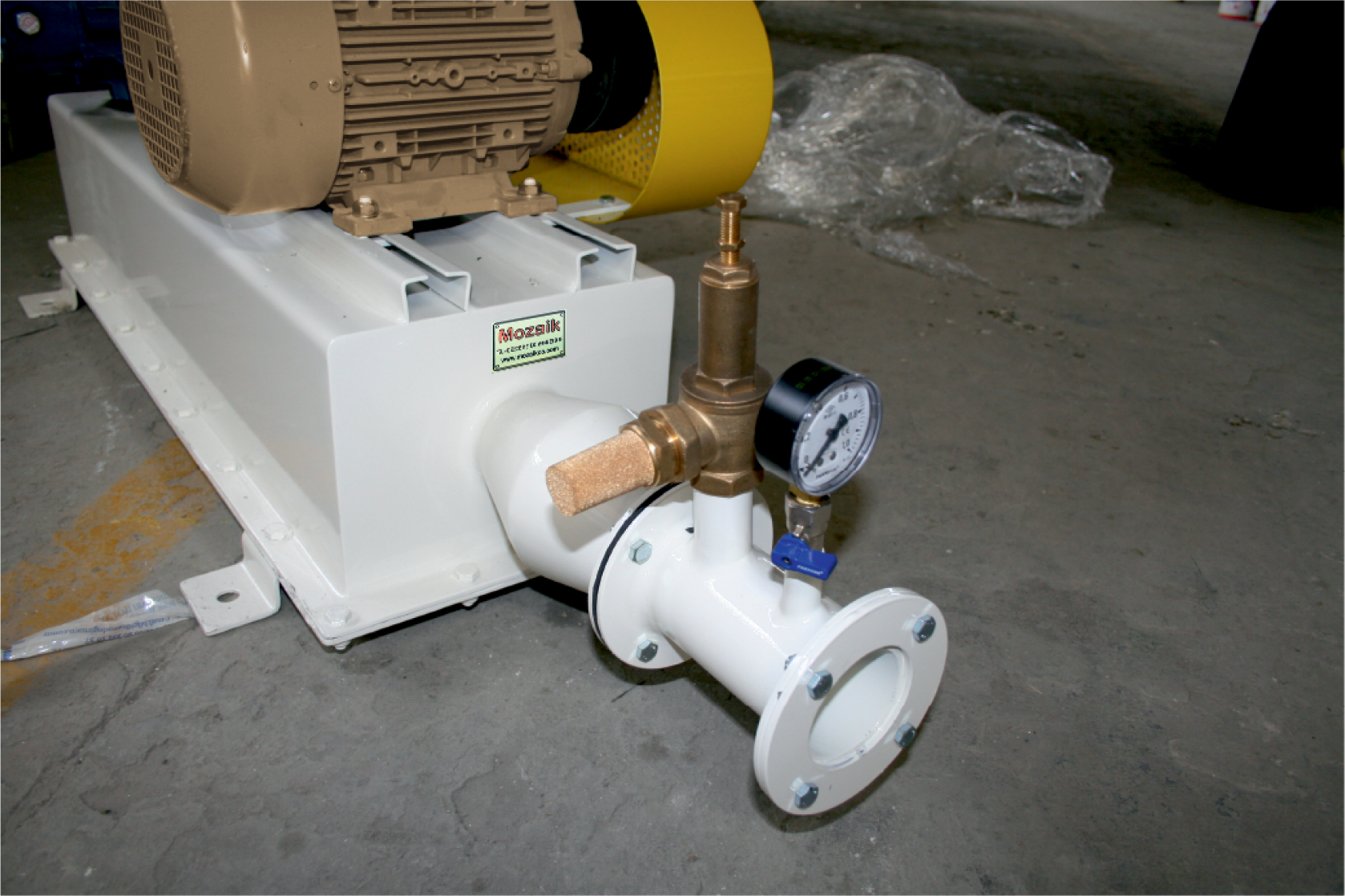

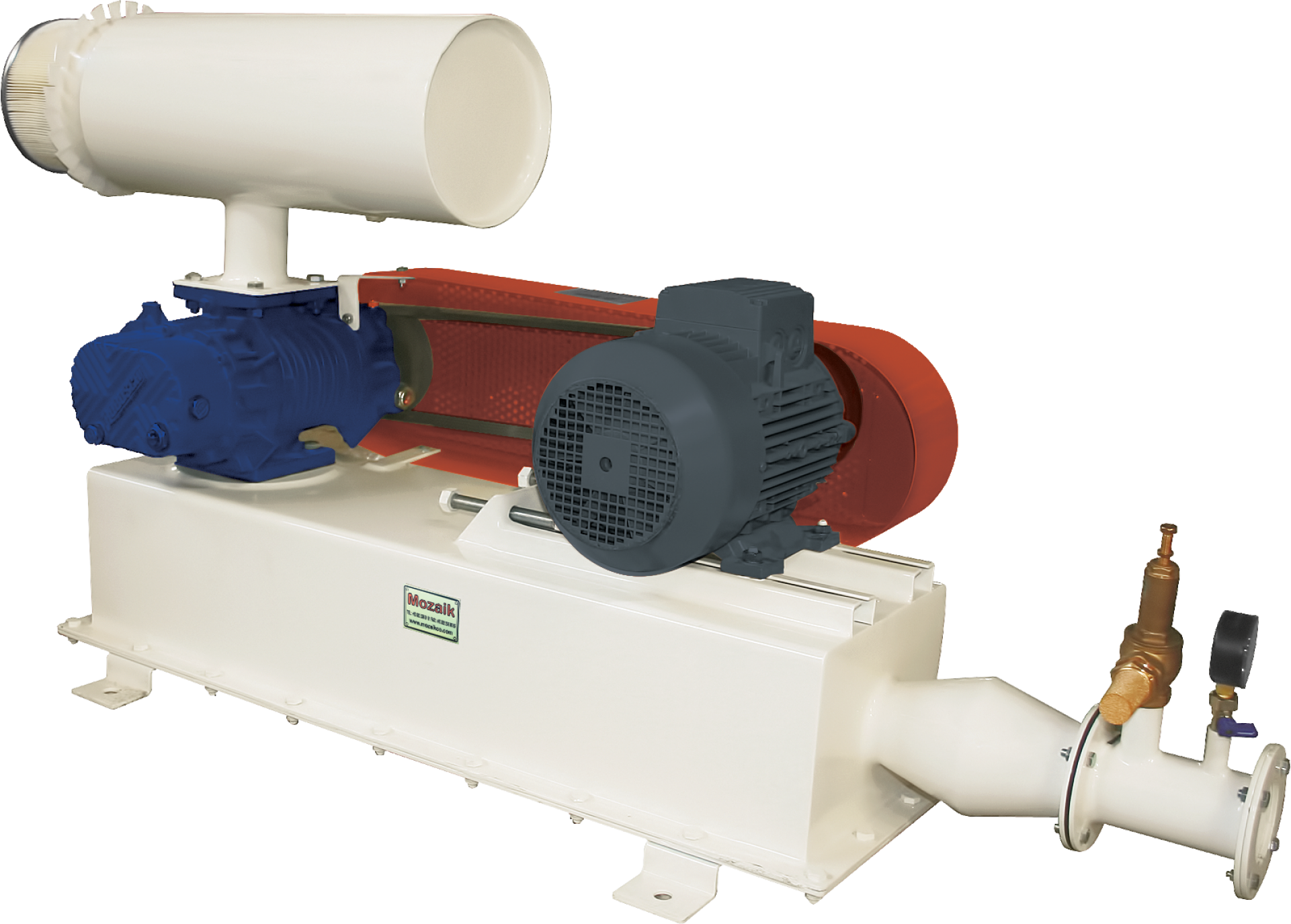

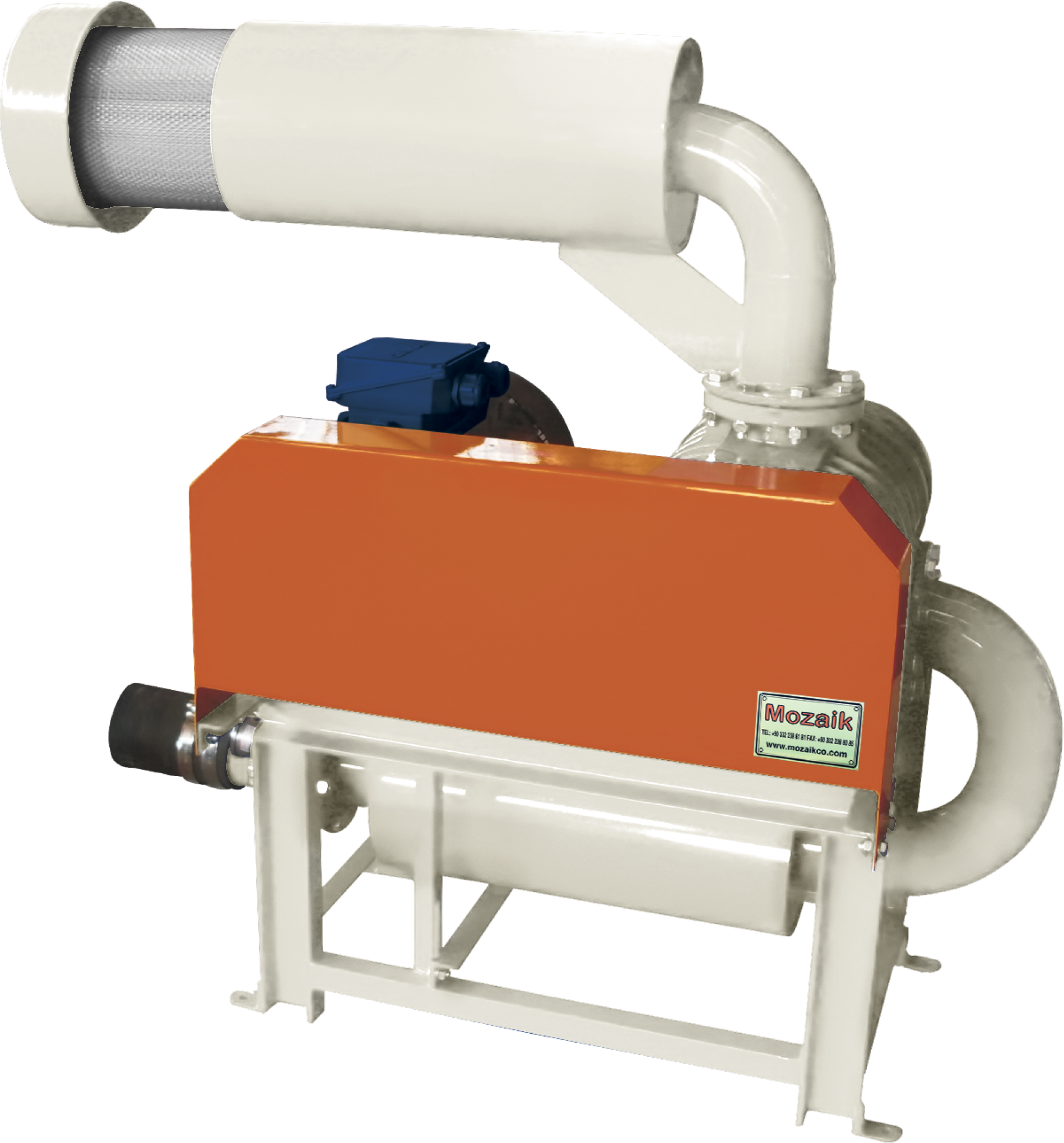

A new type of blowing unit, compact, silent, with an air intake filter and integrated safety valve. Particular attention is paid to noise control for the reduction of noise pollution and very low maintenance. The assembly is driven by a standard electric motor with an intake silencer combined with the filter which can be easily replaced. The V-belt blower unit drive easily adapts to different sizes of blowers and motors.

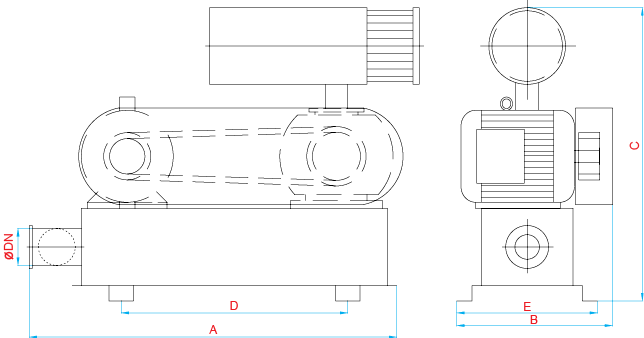

| Dimensions mm | 1450 (d/d - rpm) (500 m/bar) | ||||||||||||||||||||||||||||||
| Model Modele |
A | B | C D | E | ØDN | Capacity m3/min Power Kw Capacité m3/min Moteur kw |
Capacity m3/min Power Kw Capacité m3/min Moteur kw |
Weight kg Poids kg |
Volume m3 | ||||||||||||||||||||||
| RBS- 25 | 1180 | 355 | 810 | 625 | 320 | 76 | 1.2 | 4 | 1.8 | 4 | 420 | 1.7 | |||||||||||||||||||
| RBS- 35 | 1180 | 395 | 860 | 625 | 360 | 89 | 1.6 | 5.5 | 2.8 | 5.5 | 440 | 1.7 | |||||||||||||||||||
| RBS- 40 | 1180 | 395 | 1000 | 625 | 360 | 89 | 2.2 | 7.5 | 3.7 | 7.5 | 490 | 1.7 | |||||||||||||||||||
| RBS- 45 | 1180 | 395 | 1000 | 625 | 360 | 89 | 3.3 | 11 | 5.4 | 11 | 505 | 1.8 | |||||||||||||||||||
| Dimensions mm 1450 (d/d - rpm) (500 m/bar) 2000 (d/d - rpm) (500 m/bar) Weight Model Volume Modele Capacity m3/min Power Kw Capacity m3/min Power Kw kg m3 A B C D E ØDN Capacité m3/min Moteur kw Capacité m3/min Moteur kw Poids kg |
||||||||||||||||||||||||||||||||||
| LT-50 | 1000 | 478 | 1280 | 934 | 410 | 76 | 1,67 | 3 | 2,84 | 4 | 100 | 1.7 | ||||||||||||||||||||||
| LT-65 | 1000 | 478 | 1280 | 934 | 410 | 76 | 3,48 | 4 | 5,37 | 5.5 | 120 | 1.7 | ||||||||||||||||||||||
| LT-80 | 1052 | 640 | 934 | 625 | 490 | 89 | 5,55 | 7,5 | 8,85 | 11 | 200 | 1.7 | ||||||||||||||||||||||
| LT-100 | 1052 | 640 | 934 | 625 | 490 | 89 | 8,78 | 11 | 13,40 | 15 | 230 | 1.8 | ||||||||||||||||||||||
